The DuraMag® Service Body is designed for continuous hard work with full length, heavy duty, long sills. What separates this body from the competition is the understructure; the difference is stunning. The general body construction is fully welded—never riveted or screwed together. Our proprietary door extrusions, coupled with compression latches and automotive bulb seals, produce the most watertight compartments available. The black polymer door latches are rivet-less for additional protection. All vertical compartments incorporate nitrogen struts to optimize performance in cold environments.

All DuraMag® bodies are fully powder coated. All lights are factory wired and installed.

NEW Swing Door Locking System

The DuraMag®  (patent pending) is an optional, proprietary locking system that allows you to lock and unlock all the swing doors with a single key fob button. We also offer the all the traditional locking methods from door-by-door to the traditional rod locking system that secures all the doors on a side – with an external padlock.

DuraMag® service bodies are 6” longer than the competition (competitors’ are too short). This is reflected in our increased rear box size.

STANDARD FEATURES

  • All Aluminum (6000 Series) Understructure with Extruded Box Tube
  • Heavy Slam Latch Tailgate with Stainless Steel Lock Rods
  • Swing Doors with Nitrogen Props on Vertical Compartments
  • Black Polymer Rivetless Door Handles
  • Extreme Duty (6000 Series) .625 Interlocking Extruded Aluminum Floor
  • Fully Welded Construction – No Rivets, Screws, or Bolts to Come Loose
  • Welded Fender Flares for Superior Strength and Rigidity
  • Powder Coated – Standard: White
  • Option Colors Available:
    • Black
    • Red GM/Dodge Red and Ford Red
  • LED Marker Lights (where required)
  • LED Penny Light in Each Compartment

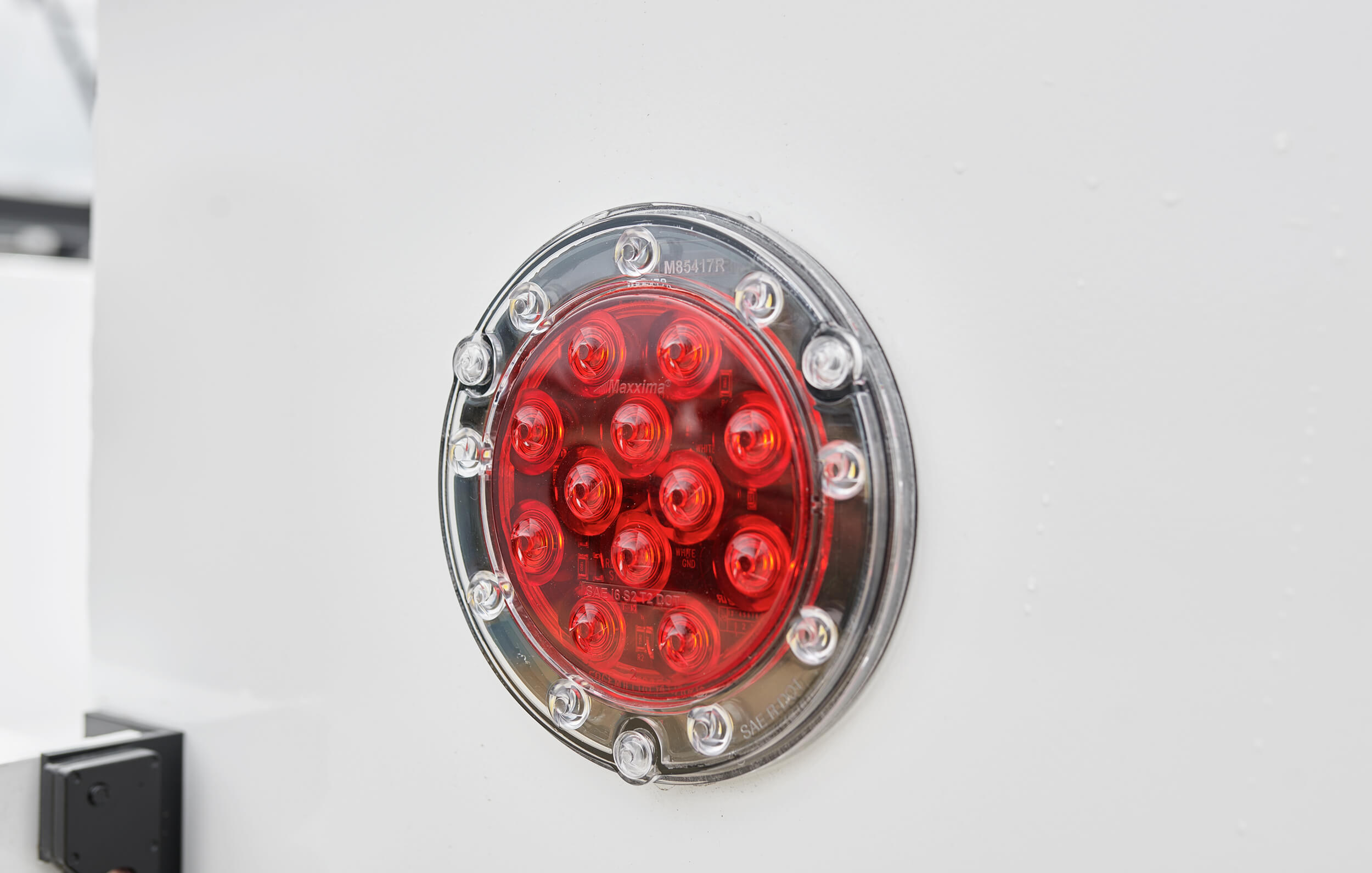

  • LED Ultra-thin 6” Round Stop/Turn/Tail/Backup Body Lights
  • Inner Bed Walls and Exterior Top of Compartments – 1/8” Diamond Plate
  • Continuous Aluminum Piano Door Hinge
  • Adjustable Shelving in Front, Middle, and Rear Compartments (one shelf with dividers in each compartment)
  • Pass-through Panel between Front & Center Compartments
  • Tread Plate Splash Guards on Front Wall – All Models
  • Strongest Built Aluminum Service Body in the Industry
  • Best 10 Year Warranty in the Industry

Dimensions

Pickup Delete - Truck Specific Fit

Shortbed - 7'
Single Rear Wheel - 8.5'
Dual Rear Wheel - 8.5'

Cab Chassis - Universal Fit

Single Rear Wheel - 9'
Dual Rear Wheel - 9'
Dual Rear Wheel - 11'

Photo Gallery

Service Body Options

Mag-Loc Keyless Locking System

Magnum Rack with Optional Lights

Magnum Rack, Rail Kit & Rear Rack

Bumpers - Lighted & Non-lighted

Receiver Hitch with Integrated Shear Plate

Standard Canopy

Tapered Side Canopy

Heavy Duty Cantilever Racks

Accessory Glide Track (Lights, Ladder Rollers, etc.)

Ladder Racks

Lift Gates

Spare Tire Retainer

Telescopic Sliding Roofs

Traditional Rod Lock System

Electric Lock for Roll-up Doors

Flip Top Compartments

Production Showing Inside of Rasied Gas Compartments

Roll-up Tonneau Covers

Lighted Compartments

Transverse Compartments

Mesh Baskets

Pipe Holder

Slide-out Tool Boxes

Wheel Chocks/Holders

E-Track

Spray-on Bed Liner

4k SS Recessed D-Ring

Strobe Lights
