The DuraMag Aluminum Dump Body sports clean lines and a stylish appearance with all aluminum construction and super heavy duty long sills and is built to be a dependable partner. Made from all aluminum, the general make up of this dump body is fully welded with no rivets or screws. With double walled sides and tailgate that eliminate cargo impact printing, this dump body will keep your cargo safe from site to site.

Standard Features

2-5 Yard Smooth Side Dump Body Standard Features

  • All Extruded 6005 T6 Aluminum Construction
  • 2×6 .250 Long Sills
  • Extruded Unibody Floor with 2.5″ OC Bracing
  • Rugged & Attractive Formed Side Walls
  • Double Walled Sides (Eliminates Cargo Impact Printing)
  • HD 4×6 .188 Rear Corner Posts
  • Double Walled Tailgate with Stainless Hinge Pins
  • Stainless Tailgate Actuator Hardware & Fasteners

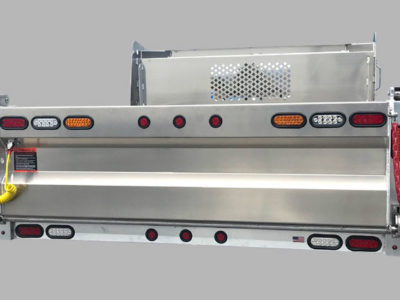

  • All Pre Wired with LED Lights Inside Box Tube
  • 16″ Aluminum Cab Shield **BOLT ON**
  • OEM Plug & Play Wire Harness Body End Only (Adaptors Sold Separately)

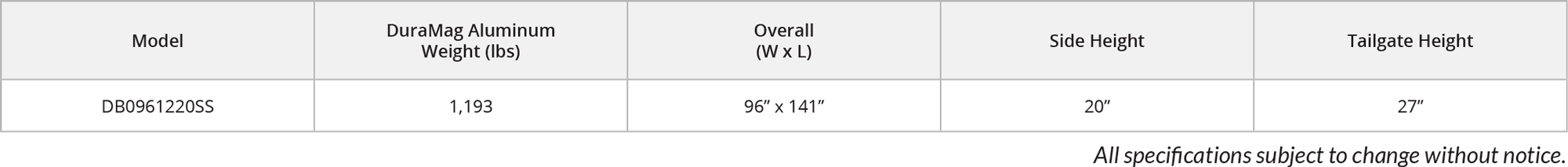

DIMENSIONS

2-5 Yard Dump Body

5-7 Yard Dump Body

DUMP BODY OPTIONS

  • Fold down sides
  • Coal door
  • D rings
  • Strobes
  • Hoist
  • Cab shield options
